Product Overview

• Brand: HANMATEK
• Power source: Battery Powered
• Style: Professional 50Mhz+Generator
• Colour: black
• Item dimensions L x W x H: 23 x 13 x 7 centimetres

Product Features

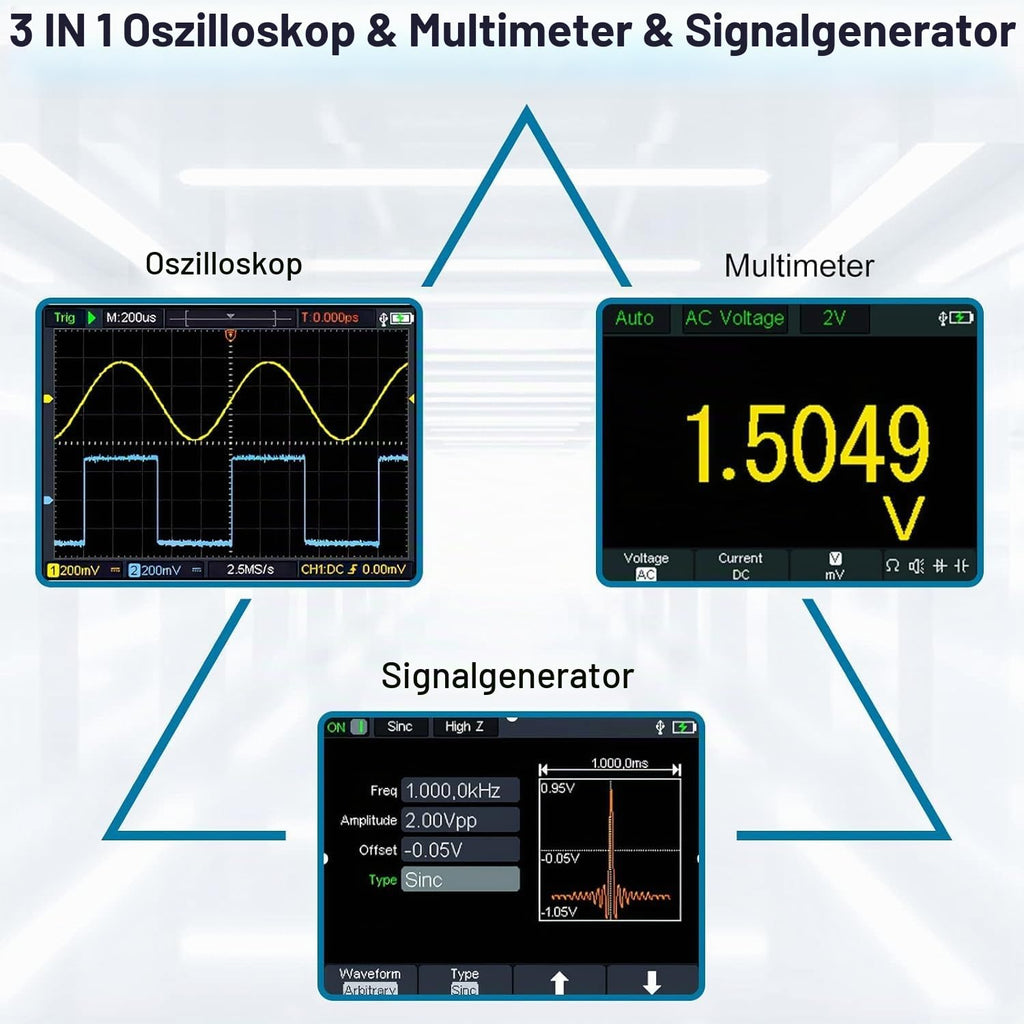

• ① Oscilloscope Mode: 1. The waveform update rate is up to 10000 Wfms / s. 2. Dual channel, bandwidth up to 50 MHz, real-time sampling rate of 125 MSA/s, recording length up to 8k. 3. Cursor measurement function. 4. Four automatic measuring functions. 5. XY function. 6. Automatic adjustment function with one button convenient for testing and debugging.
• ② Multimeter mode: 4 1/2 digits of actual RM, digital display: 20000 reading. 1. Standard voltage, current, resistance, diode, continuity, capacitance test. 2. The automatic range function is convenient for testing and debugging. 3. The maximum input voltage is 750VAC and 1000VDC. 4. Independent multimeter and oscilloscope inputs. 5. Read Hold Function 6. Relative measurement function.
• ③ USB Type-C interface not only supports mobile power supply, but also charging adapters. With an extremely low power consumption of less than 3 W, it can be operated continuously for about 6 hours. When the oscilloscope is connected to a computer, it is recognized as a USB flash drive and can read stored images and CSV waveforms, which is convenient for viewing and analyzing future waveforms and sharing waveform data.
• ④ Memory function: 4 sets of settings, 4 sets of reference waveforms, 4 images and 4 sets of waveforms in CSV format. By displaying the reference waveform and measured waveform on the same screen, it is easy to compare the waveforms. Self-calibration function. Up to 6 automatically measured values can be displayed on the screen at the same time.

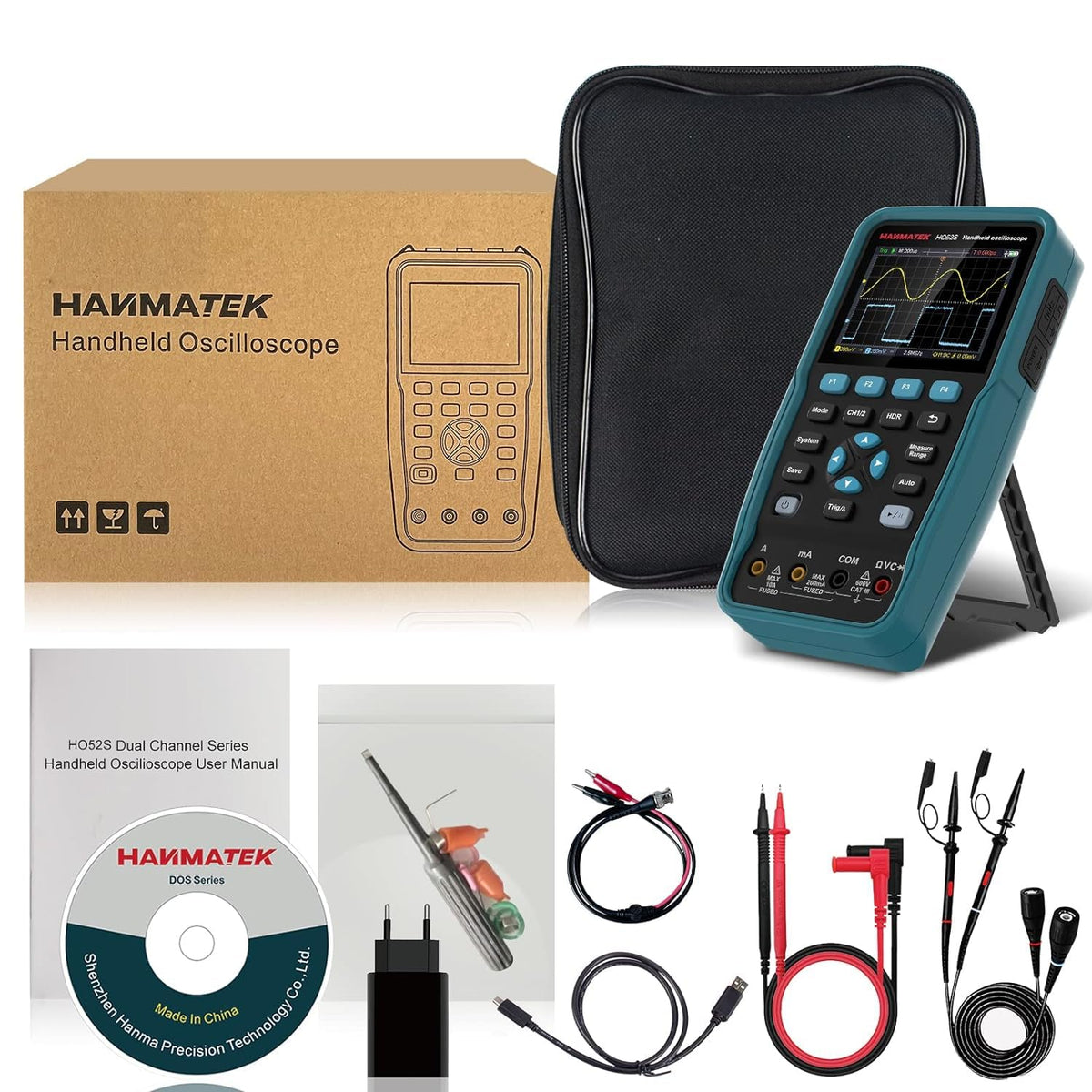

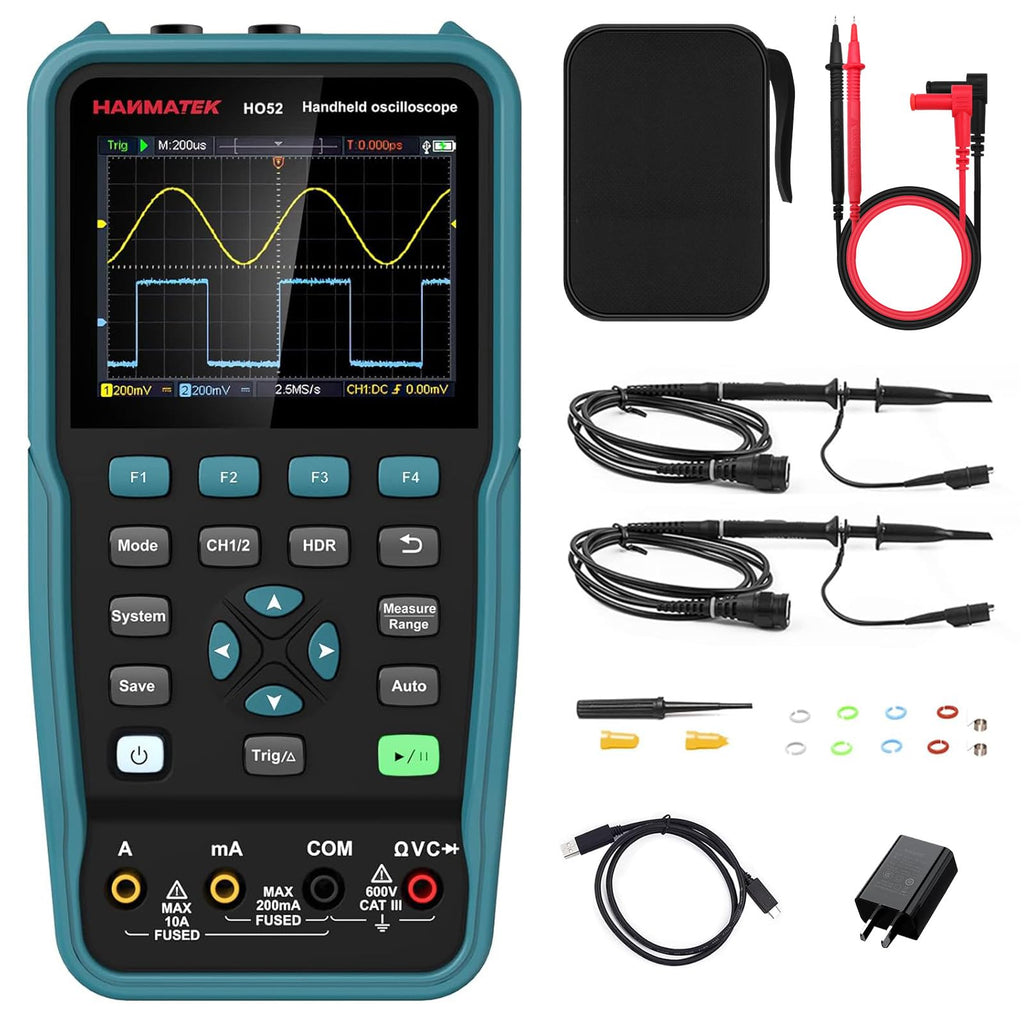

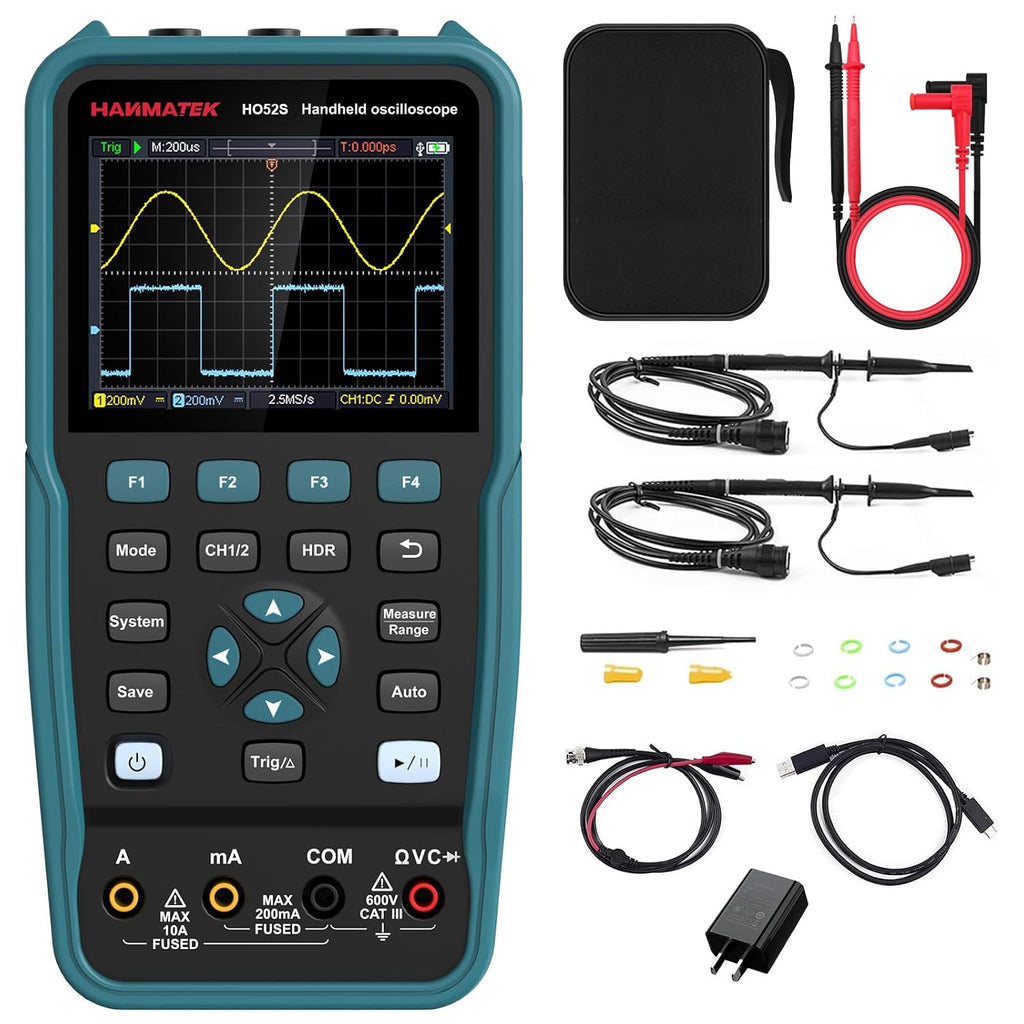

• ⑤ 1 * HO52S 2-in-1 digital handheld oscilloscope and multimeter, 1 * carrying case, 2 * oscilloscope probe, 1 * adapter, 1 * USB cable, 1 * multimeter pen, 1 * manual, 1 * calibration pen, 1 * CD (Note: customers can use the software for this product under the link https://bit.ly/3kQe4. Download wQ).

Product Information

Power Source	Battery Powered
Measurement Type	Multimeter
Compatible Devices	computers
Style Name	Professional 50Mhz+Generator
Colour	black
Item Dimensions	23 x 13 x 7 centimetres
Specification Met	ETL
Brand	HANMATEK
Model Number	HO52S
Unit Count	1.0 count
Number of Items	1
Manufacturer	HANMATEK
Number of Packs	1
Country Of Origin	China
Included Components	2-in-1 Digital Handheld Oscilloscope and Multimeter
Manufacturer Part Number	HO52S
Best Sellers Rank
ASIN	B09P6Y2XPS
